China Home Using Mesh Wifi Router / Wireless Mesh Router Dual Band Openwrt System wholesale

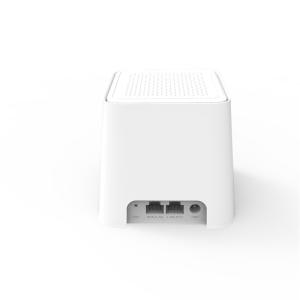

Home Using Mesh Wifi Router / Wireless Mesh Router Dual Band Openwrt System

Ask Latest Price

Brand Name :OEM

Model Number :Mesh-L1

Certification :FCC,CE,ROSH

Place of Origin :China

MOQ :2 pieces

Price :$22-24/pcs

Payment Terms :T/T, Western Union, MoneyGram

Supply Ability :100000pieces/month

Delivery Time :Sample order:7-10days;batch order 30days

Packaging Details :paper box

Color :White

Main Chipset :RTL8197FNT-VE4-CG

Antenna :2* Internal 3dBi Omnidirectional dual frequency antenna

wireless rate :1200Mbps

Max. LAN Data Rate :100Mbps

Interface :1WAN+1LAN

Type :Wireless

Function :Firewall, QoS, VPN

Contact Now

Add to Cart

View Product Description

Mesh Wifi Router Wireless Network Dual Band Openwrt For Home Using

1,Simple Introduction

MESH Routing System ZBT-L1 is a dual-band home wireless networking suite. Each node has a 10/100Mbps WAN/LAN adaptive port, a 10/100Mbps adaptive LAN port, and a wireless transmission rate of 1167Mbps.

2,Specification

Type	Demand item	Specification
Wire Interface	WAN Port	1*10/100 Base-T Interface,IEEE802.3/802.3u Protocol, Support full-duplex / half-duplex flow control.
	LAN Port	1*10/100 Base-T Interface,IEEE802.3/802.3u Protocol,Support full-duplex / half-duplex flow control.
	Adapter	1*DC Port,the router is powered by an external power adapter. External power adapter should: 1. Meet the EMC requirements of YD/T 983 and pass CCC certification; 2. Input voltage: 198V-242V ~ 50Hz; 3. Output voltage DC: 9V ± 5%, ripple range ± 100mV, output current: 1A; 4. The MTBF time of the power supply is: greater than 30,000 hours; 5. The power interface of the device itself and the DC output interface of the power adapter should be a unified international standard circular interface, and the DC head diameter is 2.1mm; 6. The adapter's DC output power cord can be optionally equipped with an EMI absorption magnetic ring; 7. Under normal conditions, the insulation resistance between the metal casing of the equipment and the power line should be not less than 50MΩ. 8, should have lightning protection against surge test, lightning protection level of at least 1.5KV.
Wireless Port	Wi-Fi Networking	802.11b/g/n/a/ac;2.4GHz/5GHz,Wireless Rate 1167Mbps. 2* Internal 3dBi Omnidirectional dual frequency antenna. The Current wifi Device quantity can highly reach to 32
