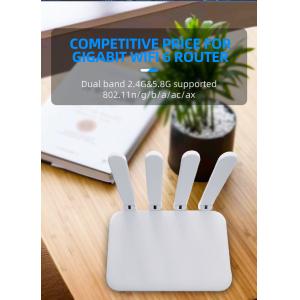

Wifi6 Mesh Router IP6000 128MB Flash 802.11ax Wifi 6 Router With Gigabit Ports
Features of WIFI6 Mesh Router
Specification of WIFI6 Mesh Router
| Chipsets | Qualcomm IPQ6000+QCN5022+QCN5052 |
| System architecture | OPEN WRT Open architecture |
| PA | 2.4G&5.8G with PA Chipset. |
| DDR3 | 256MB |
| FLASH | 128MB |
| Antennas | 4pcs*external 5dBi High-Gain antennas |
| LAN | 2*10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX) |
| WAN | 1*10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX) |
| Wifi interface | 2.4GHz 802.11ax(2x2) 5GHz 802.11ax (2x2) |
| Wireless speed | 2.4GHz: 600Mbps 5GHz: 1200Mbps |
| Wireless band | 2.4GHz: 20/40MHz; 5GHz: 20/40/80MHz |
| Mesh user | Support 1*main host,4*sub host |
| Protocal Standard | Support IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax Wireless access standard |
| Protocol stack | Support IPV6/IPV4 dual stack |
| Management configuration | Web, TELNET etc. Multiple management methods |
| Size | 220mm(L)×171mm(W)×47.5mm(H) |
| Temperature | Operating: 0℃～60℃；10%～85% non-condensing |
| Store:-40℃～80℃；5%～95% non-condensing | |
| Power adapter | 12V/1A |
Qualcomm's five core enterprise class chip IPQ6000 is used in home routers. The 4-core 64 bit A53 1.2GHz CPU+single core 1.5GHz NPU module has a computing power of up to 11040DMIPS. Based on the 14nm process, it significantly reduces power consumption and heat generation by 20%.
